CY62148ELL-45ZSXIT

CY62148ELL-45ZSXIT is a high performance CMOS static RAM organized as 512K words by 8-bits. This device features an advanced circuit design to provide ultra-low standby current. This is ideal for providing More Battery Life™ (MoBL®) in portable applications. The device also has an automatic power-down feature that significantly reduces power consumption when addresses are not toggling. Placing the device into standby mode reduces power consumption by more than 99% when deselected (active-low CE HIGH). The eight input and output pins (I/O0 through I/O7) are placed in a high impedance state when the device is deselected (active-low CE HIGH), outputs are disabled (active-low OE HIGH), or during an active write operation (active-low CE LOW and active-low WE LOW). It is suitable for interfacing with processors that have TTL I/P levels.

• Very high speed: 45ns
• Voltage range from 4.5V to 5.5V
• Pin compatible with CY62148B
• Maximum standby current is 7µA (industrial)
• Typical active current is 3.5mA at f = 1MHz
• Easy memory expansion with active-low CE, and active-low OE features
• Automatic power-down when deselected
• Complementary metal oxide semiconductor (CMOS) for optimum speed and power

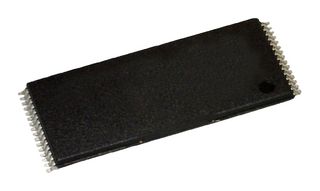

• 32-pin TSOP II package
• Industrial ambient temperature range from -40°C to +85°C
