Vous en voulez davantage ?
Quantité | Prix |
---|---|
1+ | 26,370 $ |
5+ | 25,400 $ |
10+ | 24,440 $ |
25+ | 23,660 $ |
50+ | 23,110 $ |
100+ | 22,550 $ |
250+ | 21,980 $ |
Informations produit
Aperçu du produit

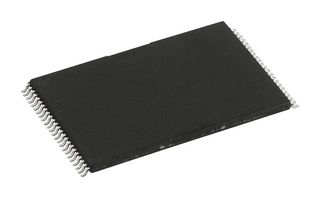

The CY62167EV30LL-45ZXI is a 16Mb high performance CMOS static RAM organized as 1M words by 16-bits or 2M words by 8-bits. This device features an advanced circuit design that provides an ultra low active current. Ultra low active current is ideal for providing More Battery Life (MoBL®) in portable applications such as cellular telephones. The device also has an automatic power down feature that reduces power consumption by 99% when addresses are not toggling. Place the device into standby mode when deselected. The input and output pins are placed in a high impedance state when the device is deselected, outputs are disabled, both byte high enable and byte low enable are disabled or a write operation is in progress. To write to the device, take chip enables and write enable input LOW. If byte low enable is LOW, then data from I/O pins is written into the location specified on the address pins.
- Ultra-low standby power
- Ultra-low active power
- Easy memory expansion with CE1, CE2 and OE
- Automatic power-down when deselected
- CMOS for optimum speed/power
Spécifications techniques
Asynchronous SRAM
2M x 8bit
2M x 8bit
TSOP-I
48Pins
2.2V
3V
Surface Mount
85°C
MSL 3 - 168 hours
16Mbit
16Mbit
2.2V to 3.6V
TSOP-I
45ns
3.6V
-
-40°C
-
No SVHC (21-Jan-2025)
Documents techniques (1)
Produits de remplacement pour CY62167EV30LL-45ZXI
2 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
