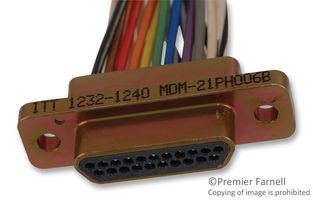

MDM-21PH006B
D Sub Connector, 21 Contacts, Plug, Crimp, MDM Series
| Quantité | Prix |
|---|---|
| 1+ | 277,490 $ |
| 5+ | 272,110 $ |
| 10+ | 269,170 $ |
| 25+ | 266,300 $ |
| 50+ | 264,420 $ |
Informations produit
Aperçu du produit
The MDM series Micro Metal Shell D-sub Connectors with 0.05-inch contact spacing. These are used in applications requiring highly reliable, extremely small, lightweight connectors with higher density contact configurations than available in traditional rectangular connectors. They are available in 8 shell sizes accommodating from 9 to 100 contacts and special arrangements of power and coaxial contacts. These connectors are designed to meet the rapidly increasing demands for an environmental, high performance, rugged, moisture-sealed microminiature connector.
- Aluminium shells to provide greater strength, prevent chipping, cracking or breaking
- Offer electromagnetic (EMI) and RFI shielding
- Contact termination-multiple indent crimp
- Contact retention -fixed via epoxy
- 3A Current rating (maximum)
Applications
Defence, Military & Aerospace, Communications & Networking, Computers & Computer Peripherals
Spécifications techniques
Micro D
MDM Series
Crimp
Copper Alloy
To Be Advised
Plug
21Contacts
Cable Mount
Gold Plated Contacts
