4299-8

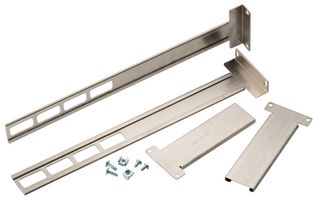

4299-8 Single Fixed Rack-Mount Kit for 2U instruments contains all the hardware you need to install a single 2U instrument in a standard 19-inch equipment rack.

Contenu

Front-rack ear 2450-360 x 1, Shelf clip 407607800 x 1, Half-rack blank front panel 2450-362 x 1, Support shelf 2450-363 x 1, Cage nut FA-148 x 4, 10-32 x 5/8" Phillips truss head screw 10-32x5/8PHTRSH x 4, 6-32 x 1/2" Phillips pan head screw 6-32X1/2PPHSEM x 4, 10-32 x 1/2" Phillips pan head screw 10-32x1/2PPHSEM x 4, 10-32 Keps® washer nut 10-32KEPNUT x 5, Carriage bolt 212026400 x 1.

Avertissements

Turn off instrument power and unplug all cables before installing an instrument in a rack. Failure to remove power before installation may cause personal injury or death from electrical shock.

Remarques

Heat sources should be mounted away from the instrument, cabling, and accessories, with sufficient space provided between the instrument and heat source for airflow and cooling.
