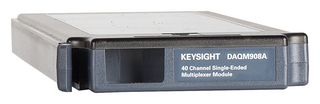

DAQM908A

DAQM908A is a 40 channel single-ended multiplexer module for DAQ970A and DAQ973A data acquisition system. This module for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. Use only 2-wire RTD and Thermistor sensors for temperature measurements with this module. The module low connection is isolated from earth and can float up to 300V.

• 40 channel single-ended multiplexer
• Single-wire switching for common-low applications
• 100 channels/s scanning

Contenu

DAQM908A 40-channel single-ended multiplexer module, Functional test certificate.
