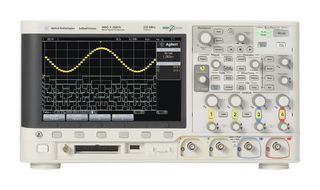

MSOX2014A

MSOX2014A is an InfiniiVision 2000 X-Series 4 + 8 channel, 100MHz digital signal oscilloscope. The InfiniiVision 2000 X-Series features Keysight's patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry's fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 X-Series offers 23 automated measurements such as voltage, time, and frequency as well as 14 waveform math functions including add, subtract, multiply, divide, and FFT.

• High resolution 8.5inch WVGA (800 x 480) display
• Up to 200,000wfms/s update rate
• Fast, responsive MegaZoom IV deep memory, 1Mpts and segmented memory
• WaveGen built-in function generator (optional)
• Upgradable bandwidth, MSO, WaveGen built-in 20MHz function generator and measurement applications
• Connectivity: USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
• Dimensions (H x W x D): 8.05 x 14.98 x 5.57"
• Advanced triggers
• The DVM upgrade is now free, and integrated on the 2000 and 3000 InfiniiVision X-Series

Contenu

MSO, Standard 5-year warranty (90 days for unserialized accessories), Standard secure erase, N2862B 150MHz 10:1 passive probe, N6459-60001 8-channel logic probe and accessory kit, Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese and Italian, Certificate of Calibration, Documentation CD, Interface language support GUI menus, Localized power cord.
