N9320B
Spectrum Analyzer, RF, Bench, 9kHz to 3GHz, 132.5 mm, 320 mm, 400 mm

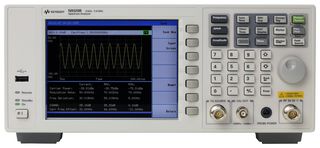

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Modèle arrêté
Informations produit
FabricantKEYSIGHT TECHNOLOGIES
Réf. FabricantN9320B
Code Commande08P4157
Fiche technique
Spectrum Analyzer TypeBench
Product Range-
Test Frequency Range9kHz to 3GHz
External Height132.5mm
External Width320mm
External Depth400mm
Weight8.4kg
Manufacturer Warranty3 Years
Plug Type-
SVHCNo SVHC (08-Jul-2021)
Aperçu du produit
N9320B RF spectrum analyzer offers frequency up to 3 GHz and analysis bandwidth to 1 MHz for base performance manufacturing.
- Minimum non-zero span sweep time: <lt/> 10 ms
- Resolving power RBW: 10 Hz to 1 MHz
- Sensitivity DANL: -130 dBm, -148 dBm with preamp on
- Overall amplitude accuracy: ±0.5 dB
- Built-in power measurements: channel power, OBW, ACP, SEM and TOI
- Built-in power meter function with Keysight U2000 series power sensor support
- Optional tracking generator and preamplifier
- Optional AM/FM, ASK/FSK demodulation capability
- Customized power-on or "preset" enabled setups
- Standard USB and LAN interface
- Multiple language graphic user interface
- Free remote control PC software
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Spécifications techniques
Spectrum Analyzer Type
Bench
Test Frequency Range
9kHz to 3GHz
External Width
320mm
Weight
8.4kg
Plug Type
-
Product Range
-
External Height
132.5mm
External Depth
400mm
Manufacturer Warranty
3 Years
SVHC
No SVHC (08-Jul-2021)
Documents techniques (2)
Législation et Questions environnementales
US ECCN:3A992
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (08-Jul-2021)
