Wire Stripper, Insulation Wires like PTFE/Silicone/Radox/Polyimide Film & Rubber, 26AWG to 16AWG
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 3 semaine(s)
| Quantité | Prix |
|---|---|
| 1+ | 415,700 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
415,70 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantKNIPEX
Réf. Fabricant12 12 14
Code Commande39AH1123
Fiche technique
Stripping Capacity AWG26AWG to 16AWG
Stripping Capacity Metric-
Product Range-
SVHCNo SVHC (27-Jun-2018)
Aperçu du produit

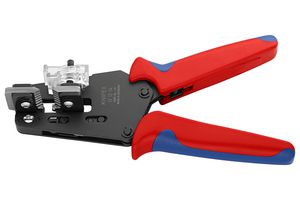

12 12 14 is a precision insulation stripper with adapted blade. Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber, multi-layer too. Replaceable shaped blade adapted precisely to the respective conductor cross-section. Includes length stop for consistent stripping length during repetitive work. Two pairs of blades cut parallel into the insulation, and remove it with a separating movement.
- Especially for cables in accordance with the American specification (AWG)
- A second pair of blades holds the remaining insulation reliably in place
- Suitable for 16 to 26AWG, handles with multi-component grips
- Pliers body is made of steel, blade is made of special tool steel, oil-hardened
- 7-3/4" length, 3" width, 1-9/16" height
Avertissements
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
Spécifications techniques
Stripping Capacity AWG
26AWG to 16AWG
For Use With
Insulation Wires like PTFE, Silicone, Radox, Polyimide Film & Rubber
SVHC
No SVHC (27-Jun-2018)
Stripping Capacity Metric
-
Product Range
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Non applicable
Conforme à la norme RoHS Phthalates:Non applicable
SVHC :No SVHC (27-Jun-2018)
