XF-942-FAR
RTD Sensor, PT100, Ceramic Wirewound, Class B, High Stability, Probe with Leads, Class B, -50 °C

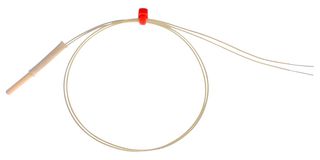

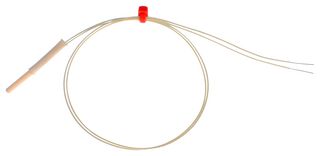

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
1 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 51,110 $ |
| 10+ | 45,780 $ |
| 25+ | 44,480 $ |
| 50+ | 42,040 $ |
| 100+ | 39,300 $ |
| 250+ | 34,960 $ |
| 500+ | 30,820 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
51,11 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantLABFACILITY
Réf. FabricantXF-942-FAR
Code Commande15AC8976
Fiche technique
Length300mm
RTD TypeProbe with Leads
RTD AccuracyClass B
External Diameter2.8mm
Measured Temperature Min-50°C
Measured Temperature Max350°C
Resistance @ 0°C100ohm
RTD Element MaterialPlatinum
Probe MaterialAlumina Ceramic
Probe Diameter2.8mm
Probe Length15mm
Cable Length - Metric300mm
Cable Length - Imperial11.81"
Cable TerminationWire Leaded
Wire Configuration2-Wire
Product Range-
Aperçu du produit
XF-942-FAR is a ceramic wire-wound - Pt100 ohm. Features optimum performance, suitable for air and immersion applications (where protected). Conforms to IEC 60751:2008 / BS EN 60751:2008. Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.
- 2.8 x 15mm detector dimensions (W x L)
- 2 wire configuration
- Platinum coil wire-wound construction sealed inside a high purity alumina ceramic body
- Range of use –50°C to +350°C
- Sensor type is platinum resistance, Pt100 ohm
- High stability
- Ice point resistance of 100 ohms
- Fundamental interval (0°C to 100°C) of 38.5ohm nominal (100 ohm)
- Class B tolerance class
- 300mm/26AWG lead
Spécifications techniques
Length
300mm
RTD Accuracy
Class B
Measured Temperature Min
-50°C
Resistance @ 0°C
100ohm
Probe Material
Alumina Ceramic
Probe Length
15mm
Cable Length - Imperial
11.81"
Wire Configuration
2-Wire
SVHC
No SVHC (21-Jan-2025)
RTD Type
Probe with Leads
External Diameter
2.8mm
Measured Temperature Max
350°C
RTD Element Material
Platinum
Probe Diameter
2.8mm
Cable Length - Metric
300mm
Cable Termination
Wire Leaded
Product Range
-
Documents techniques (4)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (21-Jan-2025)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
