R1025-RO

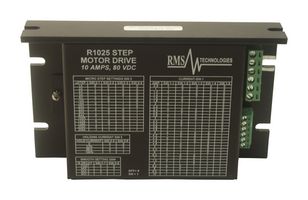

Motor Driver, R1025, Microstepping, Bipolar, Two Phase, 12 to 80 Vdc, 10 A, 800 W, 1 MHz
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 18 semaine(s)
Informations produit
FabricantLIN ENGINEERING
Réf. FabricantR1025-RO
Code Commande05X8419
Fiche technique
Control / Drive TypeMicrostep Drive
No. of PhasesTwo Phase
Output Current Max10A
Supply Voltage Min12VDC
Supply Voltage Max80VDC
Product Range-
SVHCNo SVHC (07-Jul-2017)
Aperçu du produit
The R1025-RO is a 2-phase 1-axis Step and Direction Power House Driver made of hard anodized aluminum plate. The 1-axis driver is suitable for use with the bipolar step motors. It has three optically isolated control inputs and features four different smooth settings to optimize motor accuracy and selectable step resolution from full step to 256x micro-stepping. The 6-pin pluggable terminal strip connectors are used for the optically isolated logic input connections and power/motor connections.
- 250ns Step pulse width
- -20 to 85°C Operating temperature range
Applications
Motor Drive & Control
Spécifications techniques
Control / Drive Type
Microstep Drive
Output Current Max
10A
Supply Voltage Max
80VDC
SVHC
No SVHC (07-Jul-2017)
No. of Phases
Two Phase
Supply Voltage Min
12VDC
Product Range
-
