05200004Z

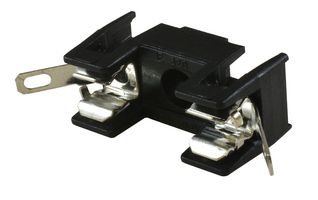

Fuseholder, Cartridge, 1 Fuse, 10 A, 300 VAC, 300 VDC, 5mm x 20mm, Solder Lug
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 2,660 $ |
| 25+ | 2,030 $ |
| 100+ | 1,560 $ |
| 250+ | 1,390 $ |
| 500+ | 1,290 $ |
| 1000+ | 1,190 $ |
| 2500+ | 1,150 $ |
| 5000+ | 1,100 $ |
Informations produit
Aperçu du produit
The OMNI-BLOK 520 series metric Omni-Blok® Fuse Block for 5 x 20mm size fuses. The low profile design that is available with a choice of solder type terminals, NEMA style QC terminals or PC board mountable terminals. Each of these designs has tin plated brass terminals. Unique design feature provides self-alignment of the clips to the fuse caps. This feature, plus one-piece clip/terminal design, assures low contact resistance. An anti-one-piece clip/terminal design, assures low contact resistance. An anti-rotation feature is also available on the solder and QC terminal designs.
- Grey/black glass reinforced thermoplastic base
- Tin-plated spring brass clip/terminals
- 1500V Minimum dielectric strength
- -40 to 85°C Ambient temperature range
- UL94V-0 Flammability rating
Applications
Industrial
Spécifications techniques
Cartridge Fuse Holder
5mm x 20mm
1Fuses
300V
To Be Advised
10A
Solder Lug
Metric OMNI-BLOK 520 Series
300V
Documents techniques (2)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
