MAX31865PMB1#

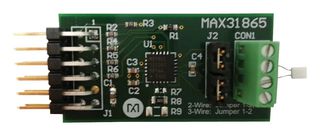

MAX31865PMB1# is a peripheral module (Pmod™) for MAX31865. This module provides the necessary hardware to interface the MAX31865 RTD-to-digital converter to any system that utilizes Pmod™-compatible expansion ports configurable for SPI communication. The IC is an easy-to-use resistance-to-digital converter optimized for platinum resistance temperature detectors (RTDs). This module is set up to operate with a PT100 platinum RTD. Suitable for industrial equipment, instrumentation and medical equipment applications.

• Simple conversion of platinum RTD resistance to digital value
• Handles 100 ohm to 1Kohm (at 0°C) platinum RTDs (PT100 to PT1000)
• Compatible with 2, 3 and 4-wire sensor connections
• 6 pin Pmod compatible connector (SPI)
• Proven PCB layout
• Fully assembled and tested
