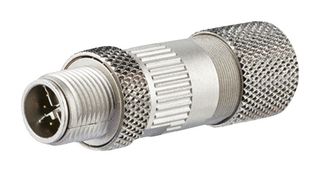

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
112 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
Quantité | Prix |
---|---|
1+ | 75,660 $ |
10+ | 71,310 $ |
25+ | 69,140 $ |
50+ | 64,360 $ |
100+ | 60,890 $ |
250+ | 59,130 $ |
500+ | 57,840 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
75,66 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMETZ CONNECT
Réf. FabricantMNF881A315-0001
Code Commande37AC4284
Fiche technique
Product Range-
Sensor Connector SizeM12
Sensor Connector GenderFemale
No. of Contacts8Contacts
No. of Positions8 Positions
Sensor Contact TypeIDC / IDT Socket
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector CodingX Coded
Connector Body MaterialZinc Body
Contact MaterialBrass
Contact PlatingGold
Current Rating500mA
Voltage Rating60VDC
SVHCNo SVHC (25-Jun-2025)
Aperçu du produit
The MNF881A315-0001 is a 8-contact X-coded Circular Connector with gold-plated contacts, straight plug entry, tin-plated CuSn (tin bronze) shield and zinc die-cast housing. M12 CAT6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly. Suitable for Power over Ethernet (PoE, PoE plus and UPoE).
- 8-wire M12 Plug for 22AWG
- Solid copper wire diameter from 0.4 to 0.64mm
- Stranded copper wire diameter from 0.48 to 0.76mm
- Easy to assemble, connection without special tools
- 5mΩ Maximum through resistance
- 100MΩ Minimum insulation resistance
- 0.5A Current carrying capacity
- 60V Rated voltage
- -25 to +85°C Operating temperature range
Applications
Communications & Networking, Industrial
Spécifications techniques
Product Range
-
Sensor Connector Gender
Female
No. of Contacts
8Contacts
Sensor Contact Type
IDC / IDT Socket
IP / NEMA Rating
IP67
Connector Body Material
Zinc Body
Contact Plating
Gold
Voltage Rating
60VDC
Sensor Connector Size
M12
Gender
Plug
No. of Positions
8 Positions
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
X Coded
Contact Material
Brass
Current Rating
500mA
SVHC
No SVHC (25-Jun-2025)
Documents techniques (1)
Produits associés
7 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (25-Jun-2025)
