AC164127-3

The AC164127-3 is a graphics PICtail Plus daughter board. It also contains a 3.2 display kit which allows evaluating Microchip Technology solution and graphics library for 16bit and 32bit microcontrollers. The kit provides a cost effective method of evaluating and developing graphics display applications.

• SD/MMC card socket, connected to SSD1926 via four wire interface
• 16Mbit (2M x 8) serial flash memory for additional data storage
• Display connector for interfacing with different display boards
• PICtail Plus interface for connecting to Explorer 16 development board
• PIC32 starter kit connector
• 3.2 QVGA (240 x 320) TFT LCD with 18bit parallel RGB interface
• Resistive four wire touch screen

Applications

Imaging, Video & Vision

Contenu

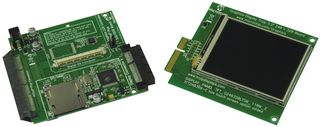

Graphics LCD controller PICtail Plus SSD1926 board (AC164127-5), Graphics display Truly 3.2inch 240 x 320 board (AC164127-4).

Remarques

Compatible with the Explorer 16 development board (DM240001) or one of the PIC32 starter boards (DM320001, DM320003). Sold separately.
