DM164120-4
Demo Board Kit, PICkit 2 18P, LEDs, Potentiometer, Prototyping Area, 6-Pin Connector
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 66 semaine(s)
Aperçu du produit
The DM164120-4 18 Pin Demo Board now with PIC16F1827 includes 4 LEDs, a potentiometer for ADC, a pushbutton, a prototyping area, and a 6 pin connector for PICkit 2 or PICkit 3. It also includes 2 extra bare PCB boards for your own design. The PIC16F1827 is a 20 pin flash microcontrollers with nanoWatt XLP technology. Along with enhanced Mid range Core with 49 Instruction, 16 Stack Levels and flash program memory with self read or write capability.
- Data signal modulator module
- Integrated capacitive mTouch sensing module and 32MHz oscillator
- 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
- MI2C, SPI, EUSART w/auto baud
- Comparators with selectable Voltage Reference
- Extended Watchdog Timer (EWDT) and enhanced power On or Off Reset
- In Circuit Serial Programming (ICSP) and on board In Circuit Debug
- 12 Channel 10bit ADC with voltage reference and 25mA source/sink current I/O
Applications
Communications & Networking, Sensing & Instrumentation
Contenu

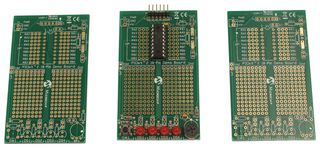

3 Boards (1 Populated, 2 Bare)
Spécifications techniques
Silicon Manufacturer
Microchip
Silicon Family Name
PIC16F18xx
Core Sub-Architecture
PIC16
Kit Contents
Board
SVHC
No SVHC (25-Jun-2025)
No. of Bits
8bit
Core Architecture
PIC
Silicon Core Number
PIC16F
Product Range
-
Documents techniques (4)
Produits associés
6 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :No SVHC (25-Jun-2025)
