EV41C56A
Evaluation Board, PIC32CM5164LS00048, ARM, Cortex-M23, 32Bit

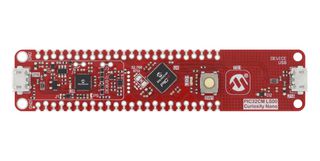

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMICROCHIP
Réf. FabricantEV41C56ACopie
Délai d’approvisionnement standard du fabricant12 semaines
Code Commande26AM8530
Votre numéro de pièce
11 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 13,890 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
13,89 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantMICROCHIP
Réf. FabricantEV41C56ACopie
Délai d’approvisionnement standard du fabricant12 semaines
Code Commande26AM8530
Silicon ManufacturerMicrochip
No. of Bits32bit
Silicon Family NamePIC32CM
Core ArchitectureARM
Core Sub-ArchitectureCortex-M23
Silicon Core NumberPIC32CM5164LS00048
Product Range-
SVHCTo Be Advised
Aperçu du produit
EV41C56A is a PIC32CM LS00 curiosity nano+ touch evaluation kit. This is a hardware platform to evaluate the PIC32CM5164LS00048 microcontroller. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony. The PIC32CM LS00 curiosity nano+ touch evaluation kit comes pre-programmed with a stand-alone demonstration application and uses power provided by its micro-USB connections. The evaluation kit can be used as a stand-alone discovery element and may also be combined with expansion elements for quick prototyping.
- PIC32CM5164LS00048 MCU, 1 user application yellow LED, 1 user application mechanical button
- 1 user application touch button, USB for device control (Can be used for powering the board)
- USB for debugger (can be used for powering board, must be used to program or debug board)
- On-board nano debugger (nEDBG): board identification in MPLAB X IDE, 1 green power/status LED
- Programming and debugging, CDC virtual COM port, 1 logic analyzer DGI GPIO
- Adjustable target voltage: MIC5353 LDO regulator controlled by the on-board debugger
- 1.7V to 3.6V output voltage
- 500mA maximum output current (limited by ambient temperature and output voltage)
Spécifications techniques
Silicon Manufacturer
Microchip
Silicon Family Name
PIC32CM
Core Sub-Architecture
Cortex-M23
Kit Contents
Curiosity Nano+ Touch Evaluation Board PIC32CM5164LS00048
SVHC
To Be Advised
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
PIC32CM5164LS00048
Product Range
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :À déterminer
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
