MC122032CA6W-FPTLW
Graphic LCD, 122 x 32 Pixels, Black on White, 5V, Parallel, Transflective

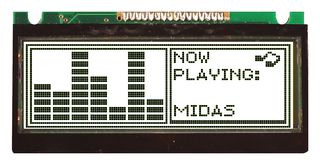

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMIDAS DISPLAYS
Réf. FabricantMC122032CA6W-FPTLW
Code Commande57AJ5620
Gamme de produitMC122032C
Fiche technique
Modèle arrêté
Informations produit
FabricantMIDAS DISPLAYS
Réf. FabricantMC122032CA6W-FPTLW
Code Commande57AJ5620
Gamme de produitMC122032C
Fiche technique
Resolution122 x 32 Pixels
Display AppearanceBlack on White
Logic Voltage5V
Font Set-
Display ModeTransflective
LCD Display TypeFSTN
Module Size59mm x 29.3mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourWhite
Product RangeMC122032C
SVHCNo SVHC (27-Jun-2024)
Aperçu du produit
- Graphic LCD (Liquid Crystal Display) with 122 x 32 pixels
- FSTN transflective, white LED backlight
- Black dots on a white background appearance
- Parallel interface, SBN1611G controller
- 5V driving voltage
- 18-way SIL top connection
- Operating temperature range from -20°C to +70°C
- Chip on board construction
- 59mm x 29.30mm x 5.5mm overall size, 52mm x 15mm viewing area
- 0.345mm x 0.345mm pixel size
Spécifications techniques
Resolution
122 x 32 Pixels
Logic Voltage
5V
Display Mode
Transflective
Module Size
59mm x 29.3mm
Operating Temperature Max
70°C
Backlighting Colour
White
SVHC
No SVHC (27-Jun-2024)
Display Appearance
Black on White
Font Set
-
LCD Display Type
FSTN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
MC122032C
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (27-Jun-2024)
