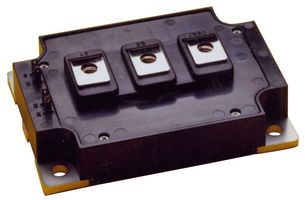

CM300DY-24NF
IGBT Module, Dual [Half Bridge], 300 A, 2.5 V, 1.13 kW
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 46 semaine(s)
Informations produit
FabricantMITSUBISHI ELECTRIC
Réf. FabricantCM300DY-24NF
Code Commande73K1937
Fiche technique
IGBT ConfigurationDual [Half Bridge]
Continuous Collector Current300A
DC Collector Current300A
Collector Emitter Saturation Voltage Vce(on)-
Collector Emitter Saturation Voltage2.5V
Power Dissipation Pd1.13kW
Power Dissipation1.13kW
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature, Tj Max-
Operating Temperature Max-
Transistor Case Style-
IGBT TerminationStud
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 5 [Trench Gate]
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
Spécifications techniques
IGBT Configuration
Dual [Half Bridge]
DC Collector Current
300A
Collector Emitter Saturation Voltage
2.5V
Power Dissipation
1.13kW
Junction Temperature, Tj Max
-
Transistor Case Style
-
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
To Be Advised
Continuous Collector Current
300A
Collector Emitter Saturation Voltage Vce(on)
-
Power Dissipation Pd
1.13kW
Collector Emitter Voltage V(br)ceo
1.2kV
Operating Temperature Max
-
IGBT Termination
Stud
IGBT Technology
IGBT 5 [Trench Gate]
Product Range
-
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
