CM450DX-34SA
IGBT Module, Dual [Half Bridge], 450 A, 2.25 V, 3 kW, 150 °C, Module

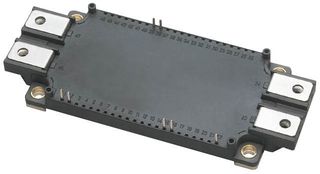

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 28 semaine(s)
Informations produit
FabricantMITSUBISHI ELECTRIC
Réf. FabricantCM450DX-34SA
Code Commande90W4348
Fiche technique
IGBT ConfigurationDual [Half Bridge]
Transistor PolarityDual N Channel
DC Collector Current450A
Continuous Collector Current450A
Collector Emitter Saturation Voltage2.25V
Collector Emitter Saturation Voltage Vce(on)2.25V
Power Dissipation Pd3kW
Power Dissipation3kW
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Collector Emitter Voltage V(br)ceo1.7kV
Transistor Case StyleModule
No. of Pins11Pins
IGBT TerminationStud
IGBT TechnologyIGBT 5 [Trench Gate]
Collector Emitter Voltage Max1.7kV
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
Spécifications techniques
IGBT Configuration
Dual [Half Bridge]
DC Collector Current
450A
Collector Emitter Saturation Voltage
2.25V
Power Dissipation Pd
3kW
Operating Temperature Max
150°C
Collector Emitter Voltage V(br)ceo
1.7kV
No. of Pins
11Pins
IGBT Technology
IGBT 5 [Trench Gate]
Transistor Mounting
Panel
SVHC
To Be Advised
Transistor Polarity
Dual N Channel
Continuous Collector Current
450A
Collector Emitter Saturation Voltage Vce(on)
2.25V
Power Dissipation
3kW
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
IGBT Termination
Stud
Collector Emitter Voltage Max
1.7kV
Product Range
-
