19002-0001
Quick Disconnect Terminal, Avikrimp 19002 Series, Female Quick Disconnect, 6.35mm x 0.81mm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 0,509 $ |
| 10+ | 0,474 $ |
| 25+ | 0,474 $ |
| 50+ | 0,467 $ |
| 100+ | 0,454 $ |
Informations produit
Aperçu du produit

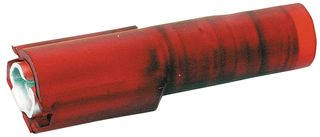

The 19002-0001 is an Avikrimp™ female quick disconnect made of brass with tin plated finish for 22 to 18AWG wire. This 190002 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements. Avikrimp™ fully insulated quick disconnects is the premium quick-disconnect terminal option. These QDs are made of a Krimptite™ terminal with a brass sleeve on the barrel and completely insulated with moulded nylon housing, providing all the benefits of an AviKrimp QD, with full insulation.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Ensures optimum safety from electric shock
- UL94V-2 flammability rating
- Maximum voltage is 300V
- Operating temperature range from -65 to 105°C
Applications
Automotive, Consumer Electronics, Industrial
Spécifications techniques
Avikrimp 19002 Series
6.35mm x 0.81mm
22AWG
Red
Nylon (Polyamide)
No SVHC (21-Jan-2025)
Female Quick Disconnect
0.25" x 0.032"
18AWG
-
Brass
Produits de remplacement pour 19002-0001
1 produit trouvé
Produits associés
7 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
