19007-0021

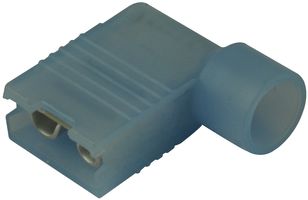

Quick Disconnect Terminal, InsulKrimp 19007 Series, Female Quick Disconnect, 6.35mm x 0.81mm
4 000 Vous pouvez réserver des unités dès maintenant
| Quantité | Prix |
|---|---|
| 1+ | 0,595 $ |
| 10+ | 0,359 $ |
| 25+ | 0,349 $ |
| 50+ | 0,338 $ |
| 100+ | 0,328 $ |
| 250+ | 0,327 $ |
| 500+ | 0,326 $ |
| 1000+ | 0,324 $ |
Informations produit
Aperçu du produit
The 19007-0021 is a Flag InsulKrimp™ Female Quick Disconnect made of brass with tin plated finish for 16 to 14AWG wire. This 190007 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Flags are used when there is a space constraint and a regular straight quick disconnect is too large. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Provides space-savings designs
- Ensures optimum safety from electric shock
- UL94V-2 Flammability rating
- 600V Maximum voltage
- -65 to +105°C Operating temperature range
Applications
Automotive, Consumer Electronics, Industrial, HVAC
Spécifications techniques
InsulKrimp 19007 Series
6.35mm x 0.81mm
16AWG
Blue
Nylon (Polyamide)
No SVHC (21-Jan-2025)
Female Quick Disconnect
0.25" x 0.032"
14AWG
2mm²
Brass
Produits de remplacement pour 19007-0021
1 produit trouvé
Produits associés
2 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
