19164-0043
Butt Splice, Blue, Perma-Seal 19164 Series, 22 AWG, 18 AWG, NiAc
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 2,760 $ |
| 10+ | 2,340 $ |
| 25+ | 1,980 $ |
| 50+ | 1,940 $ |
| 100+ | 1,910 $ |
| 250+ | 1,800 $ |
| 500+ | 1,600 $ |
| 1000+ | 1,490 $ |
Informations produit
Aperçu du produit

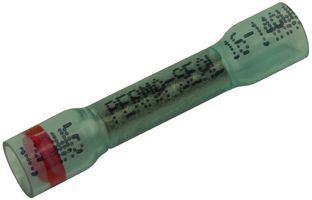

The 19164-0043 is a Perma-Seal™ Step-down Butt Splice made of copper with tin plated finish for 16 to 14 and 22 to 18AWG wire. This 19164 series splice comes with NiAc™ insulation and closed barrel. Molex offers splices for nearly every type of wiring need, from simple wire splices to splices designed for heavy-vibration applications and in harsh environments where sealed connections are required. Whether it is repairing wiring in the field, adding a wire to an existing harness or attaching two or more wires to the same point, Molex has a splice that is perfect for the job.
- Heat-shrinkable splice for harsh environments providing a completely sealed connection
- 600V Maximum voltage
Applications
Defence, Military & Aerospace, Automotive, Commercial, Consumer Electronics, Lighting, Motor Drive & Control
Spécifications techniques
Blue
22AWG
-
No SVHC (27-Jun-2024)
Perma-Seal 19164 Series
18AWG
NiAc
Documents techniques (3)
Produits associés
1 produit trouvé
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
