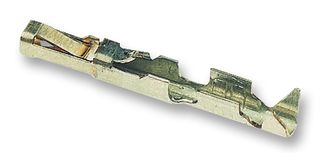

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantMOLEX
Réf. Fabricant90119-0109
Code Commande60H4144
Gamme de produitC-Grid III 90119 Series
Egalement appeléGTIN UPC EAN: 800753538795
Fiche technique
1 676 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
Quantité | Prix |
---|---|
1+ | 0,070 $ |
25+ | 0,045 $ |
100+ | 0,043 $ |
250+ | 0,042 $ |
500+ | 0,039 $ |
1000+ | 0,038 $ |
2500+ | 0,037 $ |
5000+ | 0,035 $ |
Prix pour :Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
0,07 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantMOLEX
Réf. Fabricant90119-0109
Code Commande60H4144
Gamme de produitC-Grid III 90119 Series
Egalement appeléGTIN UPC EAN: 800753538795
Fiche technique
Product RangeC-Grid III 90119 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingTin Plated Contacts
For Use WithC-Grid III Crimp Connector Housings
Wire Size AWG Min24AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (27-Jun-2024)
Aperçu du produit
The 90119-0109 is a C-Grid III™ female socket crimp terminal made of phosphor bronze with tin plated finish. This 90119 series female crimp terminal accepts 24 to 22AWG wire. It can be used with 90156, 90123, 90142, 90143 and 90160 C-Grid III™ modular crimp housings. The terminal is suitable for signal applications.
Applications
Commercial Vehicle, Consumer Electronics
Spécifications techniques
Product Range
C-Grid III 90119 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
24AWG
SVHC
No SVHC (27-Jun-2024)
Contact Gender
Socket
Wire Size AWG Max
22AWG
For Use With
C-Grid III Crimp Connector Housings
Contact Material
Phosphor Bronze
Documents techniques (4)
Produits de remplacement pour 90119-0109
1 produit trouvé
Produits associés
5 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (27-Jun-2024)
