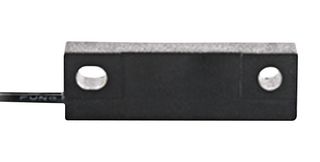

MP-MS-332-3-1-0500

MP-MS-332-3-1-0500 is a reed sensor switch. The magnetic reed sensor contains a magnetic reed switch within an enclosed housing. The housing ensures better mechanical protection and facilitates assembly. The reed sensor is a versatile switching solution, suitable for a wide variety of applications. Typical applications include position control, non-touch switching, flow detection, level sensing, and speed measuring (RPM). This reed sensor is easy to mount and IP67-rated.

• Easy mounting and fixing, fitted with wire leads
• Compact housing, adjustable switching point
• UL approval, replaces various competitors types
• Various sensitivity ranges available
• 10W/V maximum contact rating, max switching voltage is 200VDC, 140VAC
• 1A maximum switching current, 240VDC minimum breakdown voltage
• 200mohm maximum total resistance (initial), switching frequency is 500Hz maximum (25°C)
• Resonant frequency is 4000Hz typical (25°C), 1 = 10 to 15 AT range
• ABS housing, UL 1007/1569, AWG 24, 4mm stripped and tinned cable, epoxy potting compound
• Operating temperature range from -20 to +85°C

Applications

Industrial, Automation & Process Control, Automotive, Safety

Contenu

x1 Reed sensor, flatpack.

Remarques

Versatile and cost-effective solution for a variety of applications.
