SPC5089
Heat Shrink Tubing Kit, EMI Shield, 0.5" ID, 1 Ft. Length, 3 Ft. 24 AWG Ground Wire, Black
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 19,540 $ |
| 25+ | 19,540 $ |
| 100+ | 19,540 $ |
| 250+ | 19,540 $ |
Informations produit
Aperçu du produit

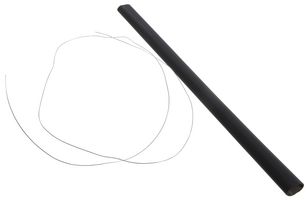

The SPC5089 is a 0.5" EMI Shield Heat Shrink Tubing Kit combines two proven technologies into a single, easy to install product for adding EMI protection to wire and cable bundles. It is ideal for cables diameters of 1/2" and less. The product is comprised of MIL-I-23053/5 polyolefin heat shrink tubing and an EMI shielding fabric woven of nickel-over-copper-plated polyester taffeta cloth which provides outstanding shielding performance. Polyolefin heat-shrink tubing with 2:1 shrink ratio and nickel-over-copper-plated polyester taffeta cloth fabric shield and which has medium flexibility.
- Easy one-step installation
- High performance Mil-Spec jacketing
- Excellent high frequency EMI shielding
- Medium flexibility
- Excellent fluid resistance
- For use with round cable
- -55 to 135°C Operating temperature range
- Multicomp Pro products are rated 4.5 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Contenu
305mm Length of 12.7mm EMI shield heat shrink tubing, 914mm Drain wire.
Spécifications techniques
1 ft. of 0.5" ID EMI Shield Heat Shrink Tubing, 3 ft. long 24 AWG Grounding Wire (Recommended Usuable I.D.: 0.25" - 0.5")
No SVHC (23-Jan-2024)
-
Documents techniques (2)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
