NLT8FX-BAG
Speaker / Loudspeaker Audio Connector, SpeakON STX Series, 8 Contact, Receptacle, Cable Mount

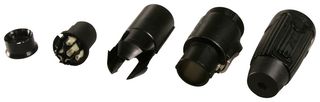

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantNEUTRIK
Réf. FabricantNLT8FX-BAG
Code Commande28K1606
Gamme de produitSpeakON STX Series
Egalement appeléGTIN UPC EAN: 7613187003912
Fiche technique
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 13 semaine(s)
Informations produit
FabricantNEUTRIK
Réf. FabricantNLT8FX-BAG
Code Commande28K1606
Gamme de produitSpeakON STX Series
Egalement appeléGTIN UPC EAN: 7613187003912
Fiche technique
Product RangeSpeakON STX Series
No. of Contacts8 Contact
Connector MountingCable Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialZinc Body
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit
The NLT8FX-BAG from Neutrik is an 8 pole speakON female cable connector with black chrome metal housing and solder termination. This female cable connector is especially designed for heavy duty amplifier/loudspeaker applications.
- Current rating 40A continuous, 50A audio signal with 50% duty cycle
- Extremely robust metal housing designed for harsh and demanding environment
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Uses precise quick lock system
- Spring copper contacts with silver plating contacts and zinc die-cast shell
- Cable outer dimension range from 8mm to 20mm
- Rated insulation voltage is 250V
- Flammability rating meets UL94 HB
- Temperature range from -30°C to +80°C
Applications
Audio, Consumer Electronics
Remarques
This speakON cable connector is not to be used as an AC mains or power supply connector.
Spécifications techniques
Product Range
SpeakON STX Series
Gender
Receptacle
Contact Plating
Silver Plated Contacts
SVHC
No SVHC (21-Jan-2025)
No. of Contacts
8 Contact
Connector Mounting
Cable Mount
Connector Body Material
Zinc Body
Documents techniques (3)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (21-Jan-2025)
