P6000A
Meter, Penta, Multifunction, P6000A Series, 6 Digits, TL/5 V cmos level Input, 115 Vac

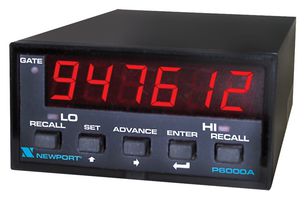

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Modèle arrêté
Informations produit
FabricantNEWPORT ELECTRONICS
Réf. FabricantP6000A
Code Commande89F1797
Fiche technique
No. of Digits / Alpha6
Digit Height14.2mm
Supply Voltage Min-
Supply Voltage Max115VAC
Panel Cutout Height44.96mm
Panel Cutout Width91.95mm
Operating Temperature Min-
Operating Temperature Max-
Product Range-
SVHCTo Be Advised
Aperçu du produit
The P6000A is a multi-function Counter Programmable Frequency Meter. Program stored in non-volatile memory, four levels of program lockout for security. Fixed decimal point or auto ranging. It is a microprocessor-based, configured by front-panel keys or by a personal computer as a frequency meter/tachometer, frequency-ratio meter, period/period- average meter, time interval/time-interval-average meter or totalizer. It combines these five operating modes with ease of setup, wide dynamic range, six-figure crystal-based accuracy and software scaling.
- 6-digit, 1/8 DIN counter
- HI and LO setpoints for control or alarm
- Five-key programming front panel
- Screw-clamp connectors for signal and power
Applications
Clock & Timing, Automation & Process Control
Spécifications techniques
No. of Digits / Alpha
6
Supply Voltage Min
-
Panel Cutout Height
44.96mm
Operating Temperature Min
-
Product Range
-
Digit Height
14.2mm
Supply Voltage Max
115VAC
Panel Cutout Width
91.95mm
Operating Temperature Max
-
SVHC
To Be Advised
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :À déterminer
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
