680M7W2203L201
Combination Layout D Sub Connector, Power-D 680M Series, DA-7W2, Receptacle, 7 Contacts

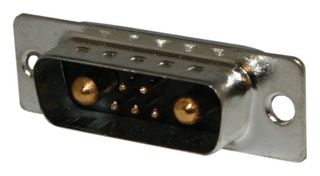

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.

| Fabricant | NORCOMP |
|---|---|
| Réf. Fabricant | 680M7W2203L201Copie |
| Délai d’approvisionnement standard du fabricant | 18 semaines |
| Code Commande | 94X3549 |
| Gamme de produit | Power-D 680M Series |
| Votre numéro de pièce |
60 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 16,320 $ |
| 5+ | 15,090 $ |
| 10+ | 14,280 $ |
| 25+ | 13,330 $ |
| 50+ | 12,500 $ |
| 100+ | 11,100 $ |
| 250+ | 10,670 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
16,32 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | NORCOMP |
|---|---|
| Réf. Fabricant | 680M7W2203L201Copie |
| Délai d’approvisionnement standard du fabricant | 18 semaines |
| Code Commande | 94X3549 |
| Gamme de produit | Power-D 680M Series |
| Product Range | Power-D 680M Series |
| Insert Arrangement | DA-7W2 |
| No. of Signal Contacts | 5Contacts |
| Gender | Receptacle(Voir les connecteurs associés) |
| No. of Contacts | 7Contacts |
| No. of Power Positions | 2 |
| Contact Type | 5 Signal, 2 Power |
| Contact Termination Type | Solder Cup |
| D Sub Shell Size | DA |
| Connector Mounting | Cable Mount |
| Connector Body Material | Steel Body |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (27-Jun-2024) |
Aperçu du produit
The 680M series POWER-D solder cup Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 12 industry standard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4.
- Available in 9, 15, 25 and 37 sizes/positions
- Available with 20 or 40A power contacts, 5A signal
- Allows signal, high current and high voltage in one connector
- Contacts are pre-loaded into the insulator
- UL94V-0 Flammability
Applications
Communications & Networking, Computers & Computer Peripherals, Power Management, Industrial
Spécifications techniques
| Product Range | Power-D 680M Series |
|---|---|
| No. of Signal Contacts | 5Contacts |
| No. of Contacts | 7Contacts |
| Contact Type | 5 Signal, 2 Power |
| D Sub Shell Size | DA |
| Connector Body Material | Steel Body |
| Contact Plating | Gold Plated Contacts |
| Insert Arrangement | DA-7W2 |
|---|---|
| Gender | Receptacle |
| No. of Power Positions | 2 |
| Contact Termination Type | Solder Cup |
| Connector Mounting | Cable Mount |
| Contact Material | Copper Alloy |
| SVHC | Lead (27-Jun-2024) |
