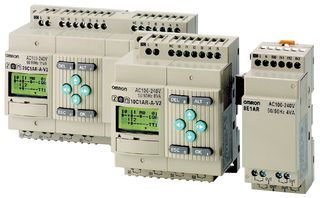

ZEN-10C3AR-A-V2

The ZEN-10C3AR-A-V2 is a Programmable Relay with increased functionality and higher precision. This single CPU unit easily provides relay, timer, counter and time switch functions. Wiring work is greatly reduced because separate wiring is not required for devices such as timers and counters. The LCD screen comes with 8 operation buttons on the front panel to enable programming in ladder view format. The LCD screen also has a backlight, making it easier to see when the ZEN is used in dark locations. Programs can be easily written, saved and monitored by personal computer. Programs can be simulated on the personal computer without connecting to the ZEN. Multi-language display in six languages (English, Japanese, German, French, Spanish, Italian).

• Easy and simple programming for automatic small-scale control
• 6 Inputs (AC input) and 4 outputs (relay output)
• Economy type with display (expansion I/O units cannot be connected)
• IP20 Protection rating (mounted inside a control panel)
• Solid-line terminal block (use solid wire or fine-stranded wire)
• Use of a memory cassette makes it easy to copy and save programs
• Equipped with two analog input channels
• Password function ensures security
• Display user-set messages or analog-converted values

Applications

Automation & Process Control, Industrial

Remarques

Memory cassette, ZEN support software, Connecting cable and Battery unit need to be ordered separately.
