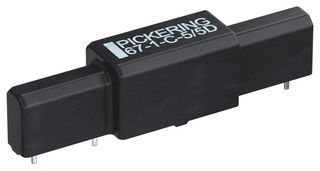

67-1-C-12/5 is a 67 series high voltage dry reed relay. It has small size and encapsulated in plastic package with internal mu-metal magnetic screen. It is constructed by using a lead frame in a Single-in-Line format and features former-less coils which enables a smaller package. The unusual package style allows interesting stacking possibilities when used to construct high density multiplexers or matrices.
- Tungsten plated contacts ensure a long and reliable life
- 1 Form C configuration
- Operating temperature range is -20°C to +85°C
- Coil voltage is 12V, coil resistance is 150 ohm
- Maximum contact resistance is 0.5 ohm
- Maximum operating voltage is 9V, minimum operating voltage is 1.2V
- Power rating is 100W, maximum switch current is 3A
- Maximum switching volts is 2500V
- Minimum stand-off volts is 5000V
- Life expectancy is 10⁸
Remarques
High voltages and stray capacitance can generate very high current pulses, which can damage the contact plating causing welding of the reed switch.
Spécifications techniques
Contact Configuration
SPDT
Product Range
67 Series
Coil Resistance
150ohm
Switching Voltage Max
2.5kV
Coil Voltage
12VDC
Relay Mounting
PCB
Switching Current Max
3A
SVHC
No SVHC (21-Jan-2025)
