PICOSCOPE 2205A

PICOSCOPE 2205A is a PicoScope 2000 series, 25MHz, 2-channel oscilloscope. PicoScope 2000 series is a compact, USB-powered PC oscilloscope designed to deliver professional-grade test and measurement performance in a highly portable form factor. It includes powerful built-in tools such as an arbitrary waveform generator, spectrum analyzer, advanced triggering and serial protocol decoding. The included PicoScope software enables detailed analysis, automatic measurements, math channels and mask-limit testing, making the 2000 series ideal for embedded system debugging, R&D, education and field service applications. It's lightweight design, laptop-friendly operation and free lifetime software updates make it a cost-effective and future-ready alternative to traditional benchtop oscilloscopes.

• 8bit vertical resolution and 12bit enhanced vertical resolution
• 200MS/s real-time sampling ensures accurate capture of fast waveforms
• 14ns rise time, 16kS buffer memory
• Built-in AWG and function generator for signal output and stimulation
• Advanced triggering enables precise capture of rare and intermittent events
• Serial protocol decoding supports I²C, SPI, UART, CAN and more buses
• Spectrum analyzer mode allows frequency-domain signal diagnostics
• Compatible PicoScope software offers automated measurements and math tools
• Dimension is 142 x 92 x 18.8mm (including connectors and feet)

Contenu

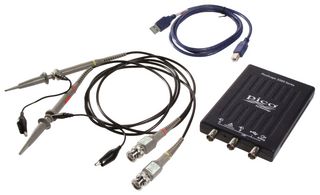

PicoScope 2205A, USB 2.0 (USB 3.0/3.1 compatible) cable, Two or four x1/x10 passive probes, Quick start guide.

Remarques

Software and user manuals are available from: https://www.picotech.com/downloads.
