2249-C-36

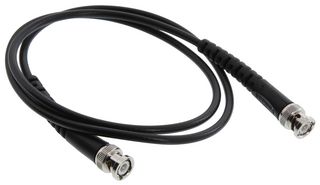

The 2249-C-36 is a 36-inch RG58C/U RF/Coaxial Cable Assembly with BNC male to BNC male connectors, PE insulation, tinned copper wire type, polyvinyl chloride non-contaminating (PVCNC) jacket and tinned copper braid shield. The moulded strain relief is directly bonded to the cable jacket for superior strength and durability. PTFE insulation and nickel tarnish-resistant outer shells used in the BNC connector provide long life and reliability. Gold-plated brass center contacts assure the most noise free connection possible. The connectors and cable is impedance matched.

• The molded strain relief is directly bonded to the cable jacket for superior strength and durability
• PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability
• Gold-plated center contacts assure the most noise free connection possible
• The connectors and cable are impedance matched
• 50Ω Impedance
• 32.2pf Capacitance per 1ft/0.304m
• 0.44dB Power loss per 100ft at 1MHz
• 19x33 Center strands x AWG
• 20AWG Wire size
• -40 to +85°C Temperature range

Applications

Test & Measurement, RF Communications, Communications & Networking, Electronics Design, Electronics Service, Computer Hardware, Instrumentation, Instrumentation
