B-12-0
B Stack-Up Banana Plug Both Ends, 12", Black
130 Vous pouvez réserver des unités dès maintenant
| Quantité | Prix |
|---|---|
| 1+ | 10,890 $ |
| 10+ | 10,330 $ |
| 50+ | 9,680 $ |
| 100+ | 9,340 $ |
| 250+ | 9,010 $ |
| 500+ | 8,680 $ |
| 1000+ | 8,460 $ |
Informations produit
Aperçu du produit

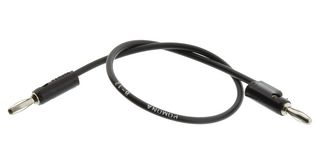

The B-12-0 is a 12-inch black Patch Cord with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.
- Mates to Model #1581, 2854 or standard Banana Jack
- Cross and vertical stacking banana plug
- Ideal for providing jumpers or chassis boxes
- Operating Temperature: +55°C (+131°F) Max
- Handheld voltage should not exceed 30 Vrms/60 Vdc
- Hands free voltage rating is 5000 WVDC
- Current: 15 Amperes Cont.
- Cable Length of 12" (305mm)
- Color is Black
Applications
Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace
Spécifications techniques
4mm Stackable Banana Plug
12"
Black
60VDC
No SVHC (15-Jun-2015)
4mm Stackable Banana Plug
304.8mm
15A
Model B Series
Documents techniques (1)
Produits associés
6 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
Certificat de conformité du produit
