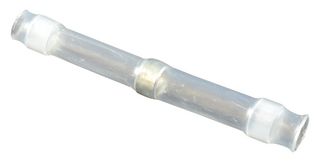

CWT-9001
Solder Sleeve, Heat Shrinkable, Terminator, 1.7 mm, Transparent, Polyolefin, 26 mm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 1,210 $ |
| 10+ | 0,893 $ |
| 25+ | 0,848 $ |
| 50+ | 0,804 $ |
| 100+ | 0,759 $ |
| 500+ | 0,726 $ |
| 1000+ | 0,683 $ |
| 2500+ | 0,630 $ |
Informations produit
Aperçu du produit
The CWT-9001 is an Open Barrel Splice provides electrical termination in a wide variety of interconnect applications. The 764619-000 SolderSleeve™ one-step terminator capabilities include terminating wires to component terminals, ground wires to cable shields, terminating coaxial cable and wire-to-wire splicing. A precisely engineered, fluxed solder preform within the heat-shrinkable thermoplastic sleeve provides a completely soldered, strain-relieved, encapsulated termination. The one-piece design of one-step terminators simplifies installation, while their transparent insulation sleeves make inspection easy.
- One-piece design
- M83519/1 and M83519/2 MIL SPEC approved
- Small size and lightweight
- Controlled soldering process
Applications
Maintenance & Repair, Commercial, Defence, Military & Aerospace, Automotive
Spécifications techniques
Terminator
Transparent
26mm
CWT Series
1.7mm
Polyolefin
-
Cadmium
