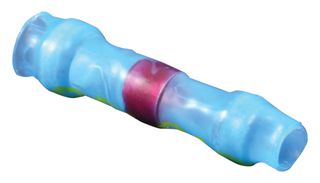

S01-01-R
Solder Sleeve, Heat Shrinkable, Terminator, 2.65 mm, Blue, PVDF (Polyvinylidene Fluoride), 16.5 mm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 3,380 $ |
| 10+ | 3,010 $ |
| 25+ | 2,850 $ |
| 50+ | 2,700 $ |
| 100+ | 2,550 $ |
| 500+ | 2,190 $ |
| 1000+ | 1,870 $ |
| 2500+ | 1,740 $ |
Informations produit
Aperçu du produit
The S01-01-R is a SolderSleeve™ Shield Terminator designed to make an environment-resistant shield wire-to-wire termination on cable. Transparent, heat-shrinkable insulation sleeve constructed of radiation cross-linked polyvinylidene fluoride. S01 series without ground lead meets the performance requirements of SAE-AS83519 (MIL-S-83519/1). The M83519 (S01) series terminator contains a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination.
- Immersion-resistant
- Heat-shrinkable solder wire termination
- Transparent insulation sleeve provides encapsulation, inspectability, strain relief and insulation
- Preformed fluxed solder provides a controlled soldering process
- One-piece design offers easy installation and lower installation cost
- Makes wire and cable termination easy and faster than conventional hand soldering or crimping
Applications
Industrial, Defence, Military & Aerospace
Spécifications techniques
Terminator
Blue
16.5mm
S01 Series
2.65mm
PVDF (Polyvinylidene Fluoride)
-
Lead
