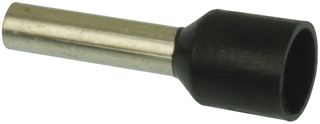

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantSCHNEIDER ELECTRIC
Réf. FabricantDZ5CE015
Code Commande57J5170
Gamme de produitDZ5 Series
Egalement appelé785901223184
Fiche technique
1 926 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
Informations produit
FabricantSCHNEIDER ELECTRIC
Réf. FabricantDZ5CE015
Code Commande57J5170
Gamme de produitDZ5 Series
Egalement appelé785901223184
Fiche technique
Wire Ferrule TypeSingle Wire
Wire Size AWG Max16AWG
Conductor Area CSA1.5mm²
Pin Length8mm
Insulator ColourBlack
Product RangeDZ5 Series
Overall Length14mm
Insulator MaterialPlastic
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (07-Jul-2017)
Aperçu du produit
The DZ5CE015 is an Insulated Cable End contains a tinned copper ferrule fitted with an insulated sleeve. The copper ferrule holds the core strands of stranded wire and facilitates terminal connections. The insulated plastic sleeve provides protection between adjacent connections. Also the insulated sleeve on some cable end types incorporates an attachment for cable markers. It features UL component recognized (File E164872) provided the AT1PA crimping tool is used to crimp the cable end and conforms to NFC 63-023 or DIN 46228.
- -20 to 105°C Temperature range
Applications
Industrial
Spécifications techniques
Wire Ferrule Type
Single Wire
Conductor Area CSA
1.5mm²
Insulator Colour
Black
Overall Length
14mm
Terminal Material
Copper
SVHC
No SVHC (07-Jul-2017)
Wire Size AWG Max
16AWG
Pin Length
8mm
Product Range
DZ5 Series
Insulator Material
Plastic
Terminal Plating
Tin
Documents techniques (2)
Produits de remplacement pour DZ5CE015
2 produit(s) trouvé(s)
Produits associés
6 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (07-Jul-2017)
