1410140-1
Connector, MULTIGIG RT Series, 144 Contacts, 1.8 mm, Receptacle, Press Fit, 9 Rows
Vous en voulez davantage ?
| Quantité | Prix | Tarif promotionnel |
|---|---|---|
| 1+ | 39,560 $ | 15,280 $ |
| 5+ | 38,080 $ | 15,280 $ |
| 10+ | 37,120 $ | 15,280 $ |
| 25+ | 36,380 $ | 15,280 $ |
| 50+ | 35,550 $ | 15,280 $ |
| 100+ | 35,050 $ | 15,280 $ |
| 250+ | 34,730 $ | 15,280 $ |
Informations produit
Aperçu du produit

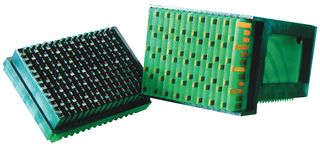

The 1410140-1 is a 144-position 9-row 16-column vertical Board-to-Board High Speed Connector with 1.27µm gold-plated phosphor bronze contacts and black LCP housing. This MULTIGIG RT product is a backplane interconnect family that offers levels of flexibility and customization. This printed circuit based, pinless, interconnect family is comprised of modular components, which can be used in a variety of combinations. Customizable impedance is matched with printed circuit wafer interface. Optimized footprints for signal integrity and ease of board design. It utilizes a 0.56mm diameter via for backplane connector for lower cost board fabrication.
- Switch slot board
- Centre guide location
- Polarization mating alignment type
- 10Gbps Performance
- Superior crosstalk performance
Applications
Defence, Military & Aerospace, Communications & Networking
Spécifications techniques
MULTIGIG RT Series
144Contacts
Backplane
Press Fit
1.8mm
Gold Plated Contacts
Backplane
1.8mm
Receptacle
9Rows
Phosphor Bronze
Lead
