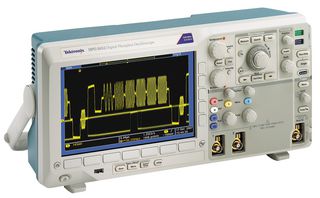

DPO3052

The DPO3052 Mixed Signal Oscilloscope provides the performance you need for many of today's mainstream applications. With automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, the DPO3052 provides the feature-rich tools you need to simplify and speed debug of your complex design.

• 5 Megapoint Record Length on All Channels
• >50,000 wfm/s Maximum Waveform Capture Rate
• Suite of Advanced Triggers
• Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
• 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
• TekVPI® Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
• 9 in. (229 mm) WVGA Widescreen colour Display
• Small Footprint and Lightweight – Only 5.8 in. (147 mm) deep and 9 lb. (4 kg)
• USB 2.0 Host Port on Front and Rear Panel for Data Storage, Printing, and Connecting a USB Keyboard
• USB 2.0 Device Port on Rear for PC Connection or Direct Printing to a PictBridge®-compatible Printer
• 10/100 Ethernet Port and Video Out Port to Export Oscilloscope Display to a Monitor or Projector
• Automated Serial Triggering, Decode, and Search Options
• Automated Triggering, Decode, and Search on Parallel Buses
• Multichannel Setup and Hold Triggering
• MagniVu™ High-speed Acquisition Provides 121.2 ps Fine Timing Resolution on Digital Channels

Applications

Power Management, Imaging, Video & Vision
