Informations produit
Aperçu du produit
The P5122 is a 100X Passive High Voltage Probe. Safe high voltage probe solutions for ground-referenced voltage testing. It is critical to safely and accurately capture real-time signal information from "elevated" or "floating" voltage systems. Our portfolio of high voltage probes provides the safety need for single-ended, differential or isolated measurements. The P5122 probe should not be used on the TPS2000 Series oscilloscopes for AC-coupled measurements on signals with greater than 300 V DC offset.
- Floatable up to 600Vrms
Applications
Industrial, Test & Measurement
Contenu

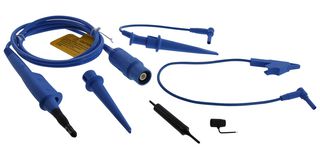

Passive high voltage probe, Large retractable hook tip, Lead with hook tip, Lead with crocodile clip, Adjustment tool, Instruction manual.
Remarques
Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Spécifications techniques
High-Voltage Passive Probe
1kV
Tektronix TPS2000 Series Oscilloscopes
To Be Advised
200MHz
100:1
P5122
Documents techniques (3)
Produits de remplacement pour P5122
1 produit trouvé
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
