LM234Z-6/NOPB

LM234Z-6/NOPB is a 3-terminal adjustable current source featuring a 10,000:1 range in operating current, excellent current regulation, and a wide dynamic voltage range of 1V to 40V. Current is established with one external resistor and no other parts are required. The initial current accuracy is ±3%. The LM134 is a true floating current source with no separate power supply connections. In addition, reverse-applied voltages of up to 20V will draw only a few dozen microamperes of current, allowing the devices to act as both a rectifier and current source in AC applications. The sense voltage used to establish the operating current in the LM134 is 64mV at 25°C and is directly proportional to absolute temperature (°K). Applications for the current sources include bias networks, surge protection, low power reference, ramp generation, LED driver, and temperature sensing.

• Operates from 1V to 40V, true 2-terminal operation
• 3% max set current error at (10μA ≤ ISET ≤ 1mA)
• Effective shunt capacitance is 15pF typical
• Programmable from 1μA to 10mA
• Average change in set current with input voltage is 0.02%/V typ at (1.5 ≤ V+ ≤ 5V)
• Operating temperature range from -25°C to 100°C

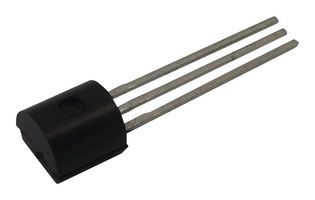

• 3-pin TO-92 package
