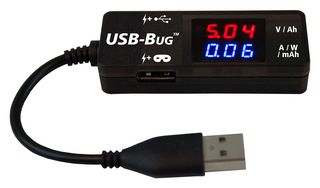

USB-BUG

USB-BUG is a USB-Bug™ tester and data masker. The Triplett USB-Bug is designed to test the power, voltage, and current of USB 2.0 or USB 3.0 charging ports. Connect the USB-Bug inline between the power source and the device the user is trying to charge. If the current is over 3amps, the USB-Bug will flash the decimal point quickly. If the voltage is greater than or equal to 5.6VDC, the decimal point indicator on the voltage measurement will flash quickly. If the voltage is less than 4.4VDC, the decimal point indicator on the voltage measurement will flash slowly. Intelligent charging feature automatically selects the safest maximum current for your phone or tablet (charging your phone or tablet up to 50% faster).

• Test voltage from 3.2VDC to 30VDC, test power from 0 to 99.9W, test current from 0 to 3amps
• Measure capacity (in mAh) to verify output of portable battery pack
• Operating voltage range from 3.2 to 30VDC, 0 to 3A current
• Over voltage indicator greater than or equal to 5.6VDC, 4.72inch USB cable length
• Under voltage indicator less than or equal to 4.4VDC
• Over current Indicator is greater than or equal to 3A
• Working current greater than or equal to 3A
• ±1% measurement accuracy, 2 readings/second measurement rate
• Dimension is 2.7 x 1 x 4.7"
