PSL2045N2T0420A104
Slide Potentiometer, Standard Type, 100 kohm, ± 20%, 500 mW, Log (Audio), Through Hole

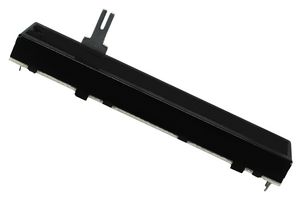

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantTT ELECTRONICS / BI TECHNOLOGIES
Réf. FabricantPSL2045N2T0420A104
Code Commande73AH2545
Gamme de produitPSL2 Series
Fiche technique
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 17 semaine(s)
Informations produit
FabricantTT ELECTRONICS / BI TECHNOLOGIES
Réf. FabricantPSL2045N2T0420A104
Code Commande73AH2545
Gamme de produitPSL2 Series
Fiche technique
Slide Potentiometer TypeStandard Type
Track Resistance100kohm
Power Rating500mW
Resistance Tolerance± 20%
Product RangePSL2 Series
Track TaperLog (Audio)
Potentiometer MountingThrough Hole
Length of Travel45mm
Lever Length8mm
Resistor TechnologyConductive Plastic
Potentiometer TerminalsPC Pin
Product Length72mm
Product Width16mm
Product Height10.2mm
Operating Temperature Min-10°C
Operating Temperature Max70°C
SVHCLead
Spécifications techniques
Slide Potentiometer Type
Standard Type
Power Rating
500mW
Product Range
PSL2 Series
Potentiometer Mounting
Through Hole
Lever Length
8mm
Potentiometer Terminals
PC Pin
Product Width
16mm
Operating Temperature Min
-10°C
SVHC
Lead
Track Resistance
100kohm
Resistance Tolerance
± 20%
Track Taper
Log (Audio)
Length of Travel
45mm
Resistor Technology
Conductive Plastic
Product Length
72mm
Product Height
10.2mm
Operating Temperature Max
70°C
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Y-Ex
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :Lead
