WL-6391Q2C3-24V
LED Panel Mount Indicator, Stainless Steel Bezel, Amber, 28 VDC, 0.5 ", 20 mA, NEMA 3R
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Modèle arrêté
Informations produit
FabricantWAMCO
Réf. FabricantWL-6391Q2C3-24V
Code Commande38Y2386
Fiche technique
LED ColorAmber
Operating Voltage28VDC
Mounting Hole Dia0.5"
Forward Current If20mA
Luminous Intensity-
IP / NEMA RatingNEMA 3R
Product Range-
SVHCNo SVHC (08-Jul-2021)
Aperçu du produit

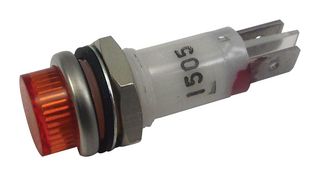

The WL-6391Q2C3-24V is an amber non-relampable panel-mount LED Indicator made of white nylon body with polycarbonate lens, stainless steel bezel and tinned brass quick-connect terminals.
- DC operation
- ±10% Voltage tolerance
- 0.25 x 0.02" Terminals are standard
- 100000-hour Rated life
Applications
Industrial, Signalling
Contenu
LED indicator, Mounting hardware (nut, lockwasher and gasket).
Spécifications techniques
LED Color
Amber
Mounting Hole Dia
0.5"
Luminous Intensity
-
Product Range
-
Operating Voltage
28VDC
Forward Current If
20mA
IP / NEMA Rating
NEMA 3R
SVHC
No SVHC (08-Jul-2021)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (08-Jul-2021)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
