PB-10

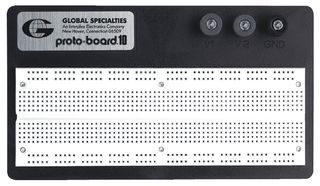

Breadboard, Solderless, 840 Tie Points, Plastic, 177.8mmx101.6mm
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 1+ | $58.380 |
Price for:Each
Minimum: 1
Multiple: 1
$58.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGLOBAL SPECIALTIES
Manufacturer Part NoPB-10
Newark Part No.17C6961
Technical Datasheet
Breadboard TypeSolderless Breadboard
Board TypeBreadboard / Solderless
Board MaterialPlastic
Total Number of Tie Points840Tie Points
No. of Distribution Strips / Buses2Bus Strips
No. of Terminal Strips1 Terminal Strip
External Height177.8mm
External Width101.6mm
Board Dimensions (L x W) - Imperial6.9" x 3.94"
Board Dimensions (L x W) - Metric175mm x 100mm
SVHCNo SVHC (17-Jan-2023)
Product Overview
The PB-10 is a 840 tie-point Externally Powered Breadboard with ABS body, nickel-plated phosphor bronze spring clip and contacts. It has high-impact plastic backplate and rubber feet stand. It offers binding post connector/footprint.
- 168 Terminal clips
- 3 Binding posts
Applications
Industrial
Technical Specifications
Breadboard Type
Solderless Breadboard
Board Material
Plastic
No. of Distribution Strips / Buses
2Bus Strips
External Height
177.8mm
Board Dimensions (L x W) - Imperial
6.9" x 3.94"
SVHC
No SVHC (17-Jan-2023)
Board Type
Breadboard / Solderless
Total Number of Tie Points
840Tie Points
No. of Terminal Strips
1 Terminal Strip
External Width
101.6mm
Board Dimensions (L x W) - Metric
175mm x 100mm
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (17-Jan-2023)
