| Quantity | Price |
|---|---|
| 1+ | $15.110 |
| 5+ | $13.900 |
| 10+ | $12.840 |
| 25+ | $11.630 |
| 50+ | $11.400 |
| 100+ | $11.160 |
| 250+ | $10.930 |
Price for:Each
Minimum: 1
Multiple: 1
$15.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | GRAYHILL |
|---|---|
| Manufacturer Part No | 30-3ULCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 14M6742 |
| Product Range | 30 Series |
| Technical Datasheet | |
| Product Range | 30 Series |
| Panel Cutout Diameter | 6.8mm |
| Contact Voltage AC Nom | 120V |
| Contact Configuration | SPST-NO |
| Switch Operation | Off-(On) |
| Pushbutton Actuator Style | Plunger for Cap |
| Contact Current Max | 5A |
| Actuator / Cap Colour | Black |
| Contact Current AC Max | 5A |
| Contact Voltage VAC | 120V |
| Contact Current DC Max | - |
| Contact Voltage VDC | - |
| IP Rating | - |
| Switch Mounting | Panel Mount |
| Switch Terminals | Solder Lug |
| Illumination Color | Non Illuminated |
| Panel Cutout (H x W) | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

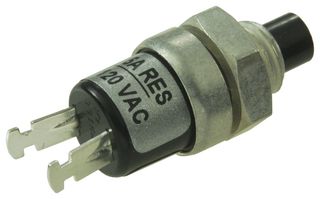

The 30-3UL is a single-pole single-throw (SPST) Pushbutton Switch with black button and thermoset plastic potting sleeve.
- 1000MΩ Minimum insulation resistance
Applications
Industrial
Technical Specifications
| Product Range | 30 Series |
|---|---|
| Contact Voltage AC Nom | 120V |
| Switch Operation | Off-(On) |
| Contact Current Max | 5A |
| Contact Current AC Max | 5A |
| Contact Current DC Max | - |
| IP Rating | - |
| Switch Terminals | Solder Lug |
| Panel Cutout (H x W) | - |
| Panel Cutout Diameter | 6.8mm |
|---|---|
| Contact Configuration | SPST-NO |
| Pushbutton Actuator Style | Plunger for Cap |
| Actuator / Cap Colour | Black |
| Contact Voltage VAC | 120V |
| Contact Voltage VDC | - |
| Switch Mounting | Panel Mount |
| Illumination Color | Non Illuminated |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Alternatives for 30-3UL
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Product traceability |
