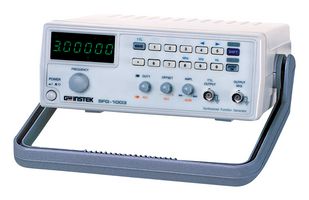

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGW INSTEK
Manufacturer Part NoSFG-1003
Newark Part No.79T9653
Product RangeSFG-1000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
Notify me when back in stock
Quantity | Price |
---|---|
1+ | $225.180 |
Price for:Each
Minimum: 1
Multiple: 1
$225.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGW INSTEK
Manufacturer Part NoSFG-1003
Newark Part No.79T9653
Product RangeSFG-1000 Series
Technical Datasheet
Signal Generator TypeDirect Digital Synthesis (DDS)
No. of Channels1 Channel
Product RangeSFG-1000 Series
Bandwidth3MHz
Signal Generator Modulation-
Manufacturer Warranty-
Plug Type-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The SFG-1003 is a 3MHz DDS Function Generator gives a high value solution to the users who need a signal source for accurate but simple measurement applications. The SFG-1000 series, an economic function generator with high accuracy and high stability output, is designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA. The 3MHz frequency range and the output waveform selection of sine, square, triangle and TTL available in the SFG-1000 series adequately provide the fundamental functions to ensure high confidence in test results.
- DDS technique and FPGA chip design
- Supports 0.1Hz to 3MHz frequency range
- High frequency accuracy (±20ppm)
- High frequency stability (±20ppm)
- 100mHz Maximum frequency resolution
- Low distortion sine wave (-55dBc, 0.1Hz to 200kHz)
- Ambient temperature range from 0°C to 40°C
- Power source AC is 100V/120V/220V/240V±10%, 50/60Hz
- Dimension is 251mm(W) x 91mm(H) x 291mm(D), approximately 2.1Kg weight
Applications
Test & Measurement
Technical Specifications
Signal Generator Type
Direct Digital Synthesis (DDS)
Product Range
SFG-1000 Series
Signal Generator Modulation
-
Plug Type
-
No. of Channels
1 Channel
Bandwidth
3MHz
Manufacturer Warranty
-
SVHC
No SVHC (17-Jan-2022)
