Chassis Mount Transformer, Open Style, Open-Style Dual Bobbin, 2 x 117V, 2 x 1.25V, 7.5 VA

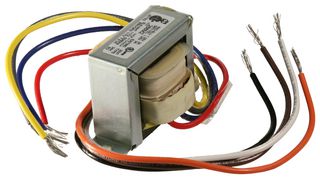

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHAMMOND
Manufacturer Part No266M2
Newark Part No.10J5329
Product Range266 Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerHAMMOND
Manufacturer Part No266M2
Newark Part No.10J5329
Product Range266 Series
Technical Datasheet
Chassis Mount Transformer TypeOpen-Style Dual Bobbin
Primary Voltages2 x 117V
Secondary Voltages2 x 1.25V
Power Rating7.5VA
Frequency Range50Hz / 60Hz
Winding TypeDual Primary, Dual Secondary
Current Rating3A
Transformer TerminalsWire Leaded
Isolation Voltage2kV
Product Range266 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 266M2 is a 7.5VA low-voltage open-style Isolation Transformer with 2.5VAC @ 3A centre-tapped series/1.25VAC @ 6A parallel secondary (RMS).
- Primary 117/234VAC @ 50/60Hz
- Secondary's can be used as a centre-tapped secondary, parallel connected or used individually
- Units are designed for use with all windings engaged
- Minimum 6" long leads
- Dual bobbin design - no electrostatic shield required
- 130°C Class-B insulation
- Hi-pot test of 2000Vrms
