P25-3226

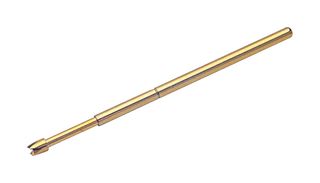

SPRING PROBE, TAPERED CROWN, 2.54MM ROHS COMPLIANT: YES
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoP25-3226
Newark Part No.29AK4510
Product RangeP25-xx26 Series
Technical Datasheet
973 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.580 |
| 10+ | $5.080 |
| 25+ | $4.670 |
| 50+ | $4.330 |
| 100+ | $4.050 |
| 250+ | $3.800 |
| 500+ | $3.560 |
| 1000+ | $3.370 |
Price for:Each
Minimum: 1
Multiple: 1
$5.58
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoP25-3226
Newark Part No.29AK4510
Product RangeP25-xx26 Series
Technical Datasheet
Centerline Spacing2.54mm
Connector Tip StyleCrown - Tapered
Current Rating3A
Overall Length33.3mm
Overall Length33.3mm
Spring Force Initial-
Spring Force Working Travel250g
Product RangeP25-xx26 Series
SVHCLead (21-Jan-2025)
Technical Specifications
Centerline Spacing
2.54mm
Current Rating
3A
Overall Length
33.3mm
Spring Force Working Travel
250g
SVHC
Lead (21-Jan-2025)
Connector Tip Style
Crown - Tapered
Overall Length
33.3mm
Spring Force Initial
-
Product Range
P25-xx26 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
