932447100
Rectangular Power Connector, 6 Contacts, G Series, Cable Mount, Solder, Receptacle
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIRSCHMANN
Manufacturer Part No932447100
Newark Part No.01P4305
Product RangeG Series
Technical Datasheet
368 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.570 |
| 10+ | $6.570 |
| 25+ | $6.570 |
Price for:Each
Minimum: 1
Multiple: 1
$6.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHIRSCHMANN
Manufacturer Part No932447100
Newark Part No.01P4305
Product RangeG Series
Technical Datasheet
No. of Contacts6Contacts
Product RangeG Series
Connector MountingCable Mount
Contact Termination TypeSolder
Pitch Spacing-
Contact GenderSocket
Contact Material-
Contact PlatingTin Plated Contacts
Connector Shell Size-
No. of Rows2Rows
SVHCLead
Product Overview
The 932447100 is a 2-row 6-contact Cable Socket with tin-plated contacts, PG 7 cable gland. The G-series cable socket/rectangular connector with forked spring, solder contacts, PA contact bearer and housing. Meets DIN VDE 0627/IEC 61984 standards. It features UL94V-1 flame-rated housing and contact bearer. Suitable for 4 to 7.5mm cables.
- Black housing
- 0.14 to 0.5mm² Conductor size
- 50VAC/DC Rated voltage
- 6A Rated current
- ≤4mΩ Contact resistance
- 3 Pollution severity
Applications
Sensing & Instrumentation, Power Management, Motor Drive & Control, Automation & Process Control, Industrial
Contents

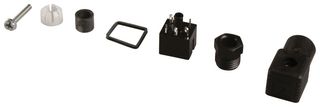

Cable socket, PG 7 Cable gland, Central screw (M3 x 20), Gasket.
Technical Specifications
No. of Contacts
6Contacts
Connector Mounting
Cable Mount
Pitch Spacing
-
Contact Gender
Socket
Contact Plating
Tin Plated Contacts
No. of Rows
2Rows
Product Range
G Series
Contact Termination Type
Solder
Gender
Receptacle
Contact Material
-
Connector Shell Size
-
SVHC
Lead
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
