Product Information
ManufacturerHONEYWELL
Manufacturer Part NoV7-1B17D8-263
Newark Part No.39B2770
Product RangeV7 Series
Technical Datasheet
Microswitch TypeMiniature
Microswitch ActuatorSimulated Roller Lever
Contact ConfigurationSPDT
Switch TerminalsQuick Connect
Contact Current Max11A
Contact Voltage DC Nom250VDC
Product RangeV7 Series
Contact Voltage AC Nom277VAC
Operating Force Max90gf
SVHCNo SVHC (07-Jul-2017)
Product Overview

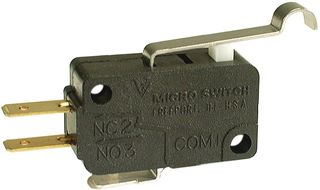

The V7-1B17D8-263 is a MICRO SWITCH™ single-pole double-throw Basic Switch with simulated roller lever actuator style, miniature type, 90gf maximum operating force and quick connect terminal. Used for simple or precision on/off, end of limit, presence/absence, pressure, temperature and manual operator interface application needs.
- Silver contact
- PCT polyester thermoplastic housing
- -40 to 82°C Operating temperature range
- Designed for 100K operations at a full load or 10M for mechanical life
- Current rating ranges from 0.1 A to 25 A
- UL/CSA approvals
Applications
Industrial, Consumer Electronics, Computers & Computer Peripherals, Test & Measurement, Medical, Communications & Networking, HVAC
Technical Specifications
Microswitch Type
Miniature
Contact Configuration
SPDT
Contact Current Max
11A
Product Range
V7 Series
Operating Force Max
90gf
Microswitch Actuator
Simulated Roller Lever
Switch Terminals
Quick Connect
Contact Voltage DC Nom
250VDC
Contact Voltage AC Nom
277VAC
SVHC
No SVHC (07-Jul-2017)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
